Automatic Cleaning Solution Filling Machine

Automatic Cleaning Solution Filling Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 12 Sets per Year
  • Port: Dalian
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier Shenyang Beiya Beverage Machinery Co.,Ltd
| Factory
Experience:2003-08-06
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  3.7*1.6*2.8
  • Place of Origin:  Liaoning, China (Mainland)
  • Brand Name:  BEIYA
  • Model Number:  BW-2000c
  • Weight: 3500.000 kg

Quick Details

  • Type: Filling Machine

  • Condition: New

  • Application: Chemical

  • Packaging Type: Cartons

  • Packaging Material: Paper

  • Automatic Grade: Automatic

  • Driven Type: Electric

  • Voltage: 380V

  • Power: 25kw

  • Place of Origin: Liaoning, China (Mainland)

  • Brand Name: BEIYA

  • Model Number: BW-2000C

  • Dimension(L*W*H): 3.7*1.6*2.8m

  • Weight: 3500kgs

  • After-sales Service Provided: Engineers available to service machinery overseas

  • Packing capacity: 200-1000ml

  • Output: 1500-2000 Boxes/hour

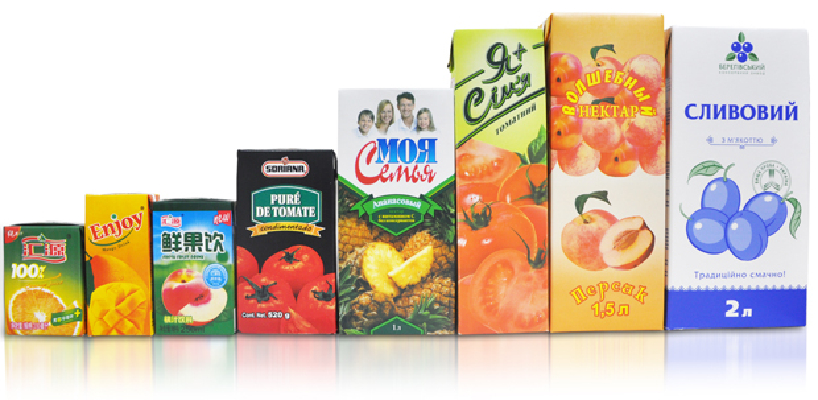

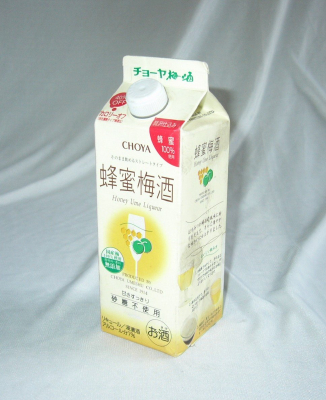

  • Carton type: gable top carton

  • Machine material: food-class stainless steel

  • Size (Length*Width*Height): 3.7*1.6*2.8m

  • e.g. Program Module: apply Germany Siemens

  • e.g. Cylinder: apply Germany Festo and Janpanese SMC

  • Processing: Filling Machine

  • Processing Types: Chemical product, wine, seasoning, etc.

Packaging & Delivery

Packaging Details:Wooden case. 40''HC
Package size(L*W*H): 2.9m*1.0m*2.9m
Delivery Detail:60 days

BW-2000C type machine is fully automatic with top configuration. The entire machine is made of food-grade stainless steel. The surface is special processed, so the appearance is beautiful and durable in use.



1.  Work flow :



Put cardboard into carton holder (manually) → Bottom preforming → Bottom heating and sealing →Filling → Top preforming → Top heating and sealing → Date printing → Finished product



The whole process is controlled by PLC, and only need one person to operate.



2.  Suitable for filling:



Sauce, wine, cleaning solution, chemical product, etc



3.  Technical parameter:



Capacity

200-1000ml

Output

1500-2000 cartons/hour

Packing material

cardboard carton / aluminium foil carton

Shelf life

3 months to 3 years, depend on different product and different process

Capping

Without capping

Machine material

Stainless steel

Overall power

24KW (three phases of power electricity)

Compressed air

Pressure: 1.0-1.4 Mpa

Flow rate: 1.4-2M3/min

Cooling water

Flow volume: ≥40L/ min

Temperature: ≤30°C

Size: (L*W*H)

2.9m*1.0m*2.9m

Net Weight

3000kg

Installation requirement

Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not

need to make angle.



4.  Function:



1.  PLC control, only need one worker.

2.  Apply Touch screen which shows the relevant information for operator, and makes the operation easy.

3.  Automatically record the working status, and can be long-term saved.

4.  The filling capacity can be adjusted at will.




  • Size:  3.7*1.6*2.8
  • Place of Origin:  Liaoning, China (Mainland)
  • Brand Name:  BEIYA
  • Model Number:  BW-2000c
  • Weight: 3500.000 kg
