Automatic Gable Top Carton Milk Filling Machine

Automatic Gable Top Carton Milk Filling Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 12 Sets per Year
  • Port: Dalian
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier Shenyang Beiya Beverage Machinery Co.,Ltd
| Factory
Experience:2003-08-06
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  3.7*1.6*2.8
  • Place of Origin:  Liaoning, China (Mainland)
  • Brand Name:  BEIYA
  • Model Number:  BW-2500
  • Weight: 3500.000 kg

Quick Details

  • Type: Filling Machine

  • Condition: New

  • Application: Beverage, Chemical, Food

  • Packaging Type: Cartons

  • Packaging Material: Paper

  • Automatic Grade: Automatic

  • Driven Type: Electric

  • Voltage: 380V/220V

  • Power: 18KW

  • Place of Origin: Liaoning, China (Mainland)

  • Brand Name: BEIYA

  • Model Number: BW-2500

  • Dimension(L*W*H): 3.7*1.6*2.8M

  • Weight: 3500KGS

  • Certification: CE,ISO

  • After-sales Service Provided: Engineers available to service machinery overseas

  • Packing capacity: 250, 500, 750, 1000ml, 1500ml, 2000ml

  • Output: 2500 Boxes/hour(by 500ml).

  • Filling type: Hot filling

  • Carton type: A type carton

  • Machine material: food-class stainless steel

  • e.g. Cylinder: apply Germany Festo and Janpanese SMC

  • e.g. Heater: apply Swizerland LEISTER

  • e.g. Steel Plate: Food grade stainless steel with best quality

  • Processing: Filling Machine

  • Processing Types: Milk

Packaging & Delivery

Packaging Details:Two wooden cases.
Package size: 4.1*1.95*2.58M
Delivery Detail:60 days

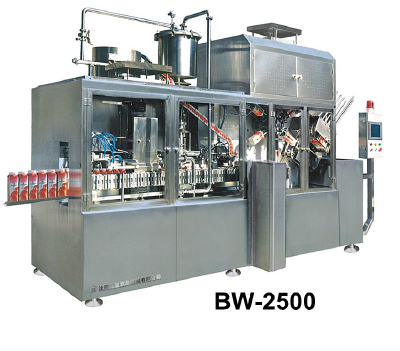

BW-2500 type machine is fully automatic with standard configuration. The entire machine is made of food-grade stainless steel. The surface is special processed, so the appearance is beautiful and durable in use.



1.  Work flow :



Put cardboard into carton holder (manually) → Bottom preforming → Bottom heating and sealing →Filling → Top preforming → Top heating and sealing → Date printing → Finished product



The whole process is controlled by PLC, and only need one person to operate.



2.  Suitable for filling:



Milk, yogurt, cream, soya been milk, beaten egg, etc.



3.  Technical parameter:



Capacity

250ml, 500ml, 750ml, 1000ml, 1200ml, 1500ml, 2000ml

Output

2500 cartons/h

Packing material

A Type carton

Shelf life

milk, yogurt: 7--21days ( 2-6°C storage)

acid juice: 30–60 days (2-6°C storage)

whipped cream: 12 months (-18°C storage)

Capping

Without capping

Filling temperature

Under 50 degree centigrade

Overall power

18KW (three phases of power electricity)

Compressed air

Pressure: 1.0-1.4 Mpa

Flow rate: 1.4-2M3/min

Cooling water

Flow volume: ≥40L/ min

Temperature: ≤15°C

Size: (L*W*H)

3.7*1.6*2.8M

Net Weight

3500kg

Installation requirement

Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not

need to make angle.


  • Size:  3.7*1.6*2.8
  • Place of Origin:  Liaoning, China (Mainland)
  • Brand Name:  BEIYA
  • Model Number:  BW-2500
  • Weight: 3500.000 kg
