Gable Top Carton Milk Filling Machine

Gable Top Carton Milk Filling Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 12 Sets per Year
  • Port: Dalian
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier Shenyang Beiya Beverage Machinery Co.,Ltd
| Factory
Experience:2003-08-06
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  3.3*1.1*2.8
  • Place of Origin:  Liaoning, China (Mainland)
  • Brand Name:  BEIYA
  • Model Number:  BW-1000-2
  • Weight: 1200.000 kg

Quick Details

  • Type: Filling Machine

  • Condition: New

  • Application: Beverage

  • Packaging Type: Cartons

  • Packaging Material: Paper

  • Automatic Grade: Semi-Automatic

  • Driven Type: Electric

  • Voltage: 220V/380V

  • Power: 22kw

  • Place of Origin: Liaoning, China (Mainland)

  • Brand Name: BEIYA

  • Model Number: BW-1000-2

  • Dimension(L*W*H): 3.3*1.1*2.8M

  • Weight: 1200KGS, 1100kg

  • Certification: CE,ISO

  • After-sales Service Provided: Engineers available to service machinery overseas

  • Packing capacity: 250, 500, 750, 1000ml, 1500ml, 2000ml

  • Production quantity: 1000 cartons/hour(by 500ml).

  • Production Character: Stable performance, easily operation and control

  • Carton material: A and B type carton

  • Filling type: cold filling and hot filling

  • e.g. Cylinder: apply Germany Festo and Janpanese SMC

  • e.g. Program Module: apply Germany Siemens

  • e.g. Heater: apply Swizerland LEISTER

  • product type: filling machine

Packaging & Delivery

Packaging Details:wooden case.
Package size: Carton forming machine: 1.3m*0.9m*1.5m
Filling machine: 2.0m*0.9m*2.6m
Delivery Detail:30 days

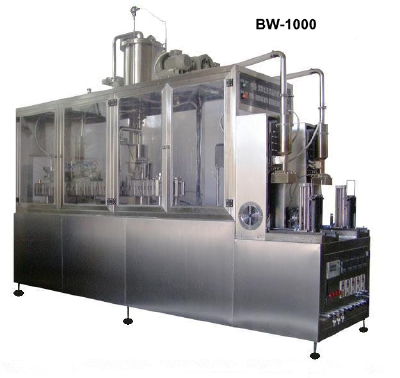

BW-1000-2 type filling machine consist of two separate machines: carton forming machine and filling machine. The entire machine is made of food-grade stainless steel. The surface is special processed, so the appearance is beautiful and durable in use.



1.  Work flow :



1) Carton Forming Machine: Cardboard →(manually put on the carton)→ Bottom heating → Bottom molding and sealing →Top Open Carton



2) Filling Machine: Top Open Carton with Cap →(manually Put on the carton)→ Filling → Top heating → Top molding and sealing → Date printing → Finished Product



The operation of the filling machine is automatically controlled by computer program, and others are controlled by electric apparatus. The whole progress is controlled by PLC, and needs 4 persons to operate.



2.  Suitable for filling:



Milk, yogurt, cream, beaten egg, soya been milk, juice, tea drink, corn drink, pure water,

sauce, wine, cleaning solution, chemical product, granular and dry powder, etc



3.  Technical parameter:



Capacity

200-1000ml

Output

800-1200 cartons/h

Packing material

A/B Type carton

Shelf life

Cold filling: milk, yogurt: 7--21days ( 2-6°C storage)

acid juice: 30–60 days (2-6°C storage)

whipped cream: 12 months (-18°C storage)

Hot filling: juice: 12 months (normal temperature)

Capping

Without capping

Overall power

22KW (three phases of power electricity)

Compressed air

Pressure: 1.0-1.4 Mpa

Flow rate: 0.8-1.0M3/min

Cooling water

Flow volume: ≥20L/ min

Temperature: normal temperature

Size: (L*W*H)

Carton forming machine: 1.3m*0.9m*1.5m

Filling machine: 2.0m*0.9m*2.6m

Net Weight

1100kg

Installation requirement

Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not

need to make angle.


  • Size:  3.3*1.1*2.8
  • Place of Origin:  Liaoning, China (Mainland)
  • Brand Name:  BEIYA
  • Model Number:  BW-1000-2
  • Weight: 1200.000 kg
