Packing Machine for Powder

Packing Machine for Powder

  • Min.Order Quantity: 1 Set
  • Supply Ability: 12 Sets per Year
  • Port: Dalian
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier Shenyang Beiya Beverage Machinery Co.,Ltd
| Factory
Experience:2003-08-06
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  3.3*m*1.1m*2.0
  • Place of Origin:  Liaoning, China (Mainland)
  • Brand Name:  BEIYA
  • Model Number:  BW-1000-3
  • Weight: 1500.000 kg

Quick Details

  • Type: Filling Machine

  • Condition: New, New

  • Application: Beverage

  • Packaging Type: Cartons

  • Packaging Material: Paper

  • Automatic Grade: Semi-Automatic

  • Driven Type: Electric

  • Voltage: 380V

  • Power: 23kw

  • Place of Origin: Liaoning, China (Mainland)

  • Brand Name: BEIYA

  • Model Number: BW-1000-3

  • Dimension(L*W*H): 3.3*m*1.1m*2.0m

  • Weight: 1500kgs

  • After-sales Service Provided: Engineers available to service machinery overseas

  • Packing volume: 200-1000ml

  • Production speed: 800-1200 cartons/hour

  • Carton material: cardboard carton / aluminium foil carton

  • Machine material: food-class stainless steel

  • e.g. Steel Plate: Food grade stainless steel with best quality

  • e.g. Cylinder: apply Germany Festo and Janpanese SMC

  • Processing: Filling Machine

  • Processing Types: Powder

Packaging & Delivery

Packaging Details:Wooden cases.
Package size(L*W*H):Carton forming machine: 1.3m*0.9m*1.5m
Capping machine: 0.8m*0.6m*1.2m
Filling machine: 2.0m*0.9m*2.6m
Delivery Detail:30 days

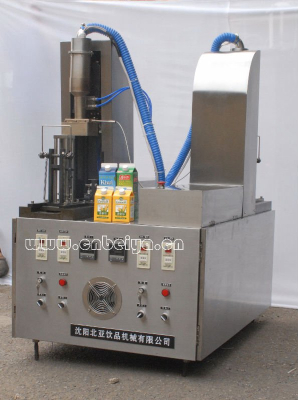

BW-1000-3 type machine consist of three separate machines: carton forming machine, capping machine and filling machine. The entire machine is made of food-grade stainless steel. The surface is special processed, so the appearance is beautiful and durable in use.



1.  Work flow:



1) Carton Forming Machine: Cardboard → Put the carton onto the mandrel(manually) → Bottom preforming (manually) → Bottom heating → Bottom sealing → Top open carton



2) Capping Machine: Top Open Carton →Put the cap into and the carton's capping hole(manually) → Ultrasonic welding → Top Open Carton with Cap



3) Filling Machine: Top Open Carton with Cap → put the carton onto the conveyor(manually) → Top preforming → Filling → Top heating → Top sealing → Date printing → Finished product



2.  Suitable for filling:



Cornmeal, granular product, powder, etc.



3.  Technical parameter:



Capacity

200-1000ml

Output

800-1200 cartons/h

Packing material

cardboard carton / aluminium foil carton

Shelf life

depend on different product and different production process

Capping

With capping (Optional)

Overall power

22KW (three phases of power electricity)

Compressed air

Pressure: 1.0-1.4 Mpa

Flow rate: 0.8-1.0M3/min

Cooling water

Flow volume: ≥20L/ min

Temperature: normal temperature

Size: (L*W*H)

Carton forming machine: 1.3m*0.9m*1.5m

Capping machine: 0.8m*0.6m*1.2m

Filling machine: 2.0m*0.9m*2.6m

Net Weight

1200kg

Installation requirement

Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not

need to make angle.


  • Size:  3.3*m*1.1m*2.0
  • Place of Origin:  Liaoning, China (Mainland)
  • Brand Name:  BEIYA
  • Model Number:  BW-1000-3
  • Weight: 1500.000 kg
